Why more than two tappets are impractical to use in bottom shaft of a loom ? DUET-2014

-

  • Why more than two tappets are impractical to use in bottom shaft of a loom ? DUET-2014

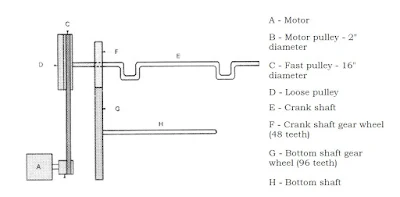

  •  Ans:Bottom shaft contains two picking tappet i.e one revolution of bottom shaft, two times picking is done, so it is needed to do two times shedding for one revolution of bottom shaft. So,If shedding tappet is placed on bottom shaft.It is impossible to use more than two. If bottom shaft contains 3 tappets produce 3 times beating and 3 times picking which is not real i.e picking mechanism is always mounted on the bottom shaft and picking takes place alternatively from the opposite side for each revolution of bottom shaft.
